Inventory System Plugin

View sample code

Overview

The main challenge in creating the Inventory System plugin was figuring out how to generalize its usability such that it can be used in various types of inventory mechanics (grid-based, weight-based, limitless, etc.).

At the time of creating this plugin, I was only interested in making the plugin fit for my main project (see Beings Beyond), which required the ability to:

  • limit the capacity of an inventory category
  • stack and lock items
  • track multiple instances of the same, non-stackable item
Testing the bare-bones functionality of the system, which includes three common attributes of a generic inventory item

Features and API

Common features of the plugin include, but not limited to:

  • Add/remove items to/from inventory, respectively
  • Customizable item definitions
    • Custom (and savable) item properties
    • Modular usage definitions
    • Evaluable, runtime GameplayTags
  • Extendable UI data for items
  • Save/load inventories and items synchronously and asynchronously
  • Interface for any UObject-derived classes that can be added to an inventory
  • Initialize inventories with preset items
Available nodes for the Inventory System plugin (non-exhaustive)

Use-cases

Creature Archive (Beings Beyond)

In Beings Beyond, the Creature Archive is a collection of unlockable creatures.

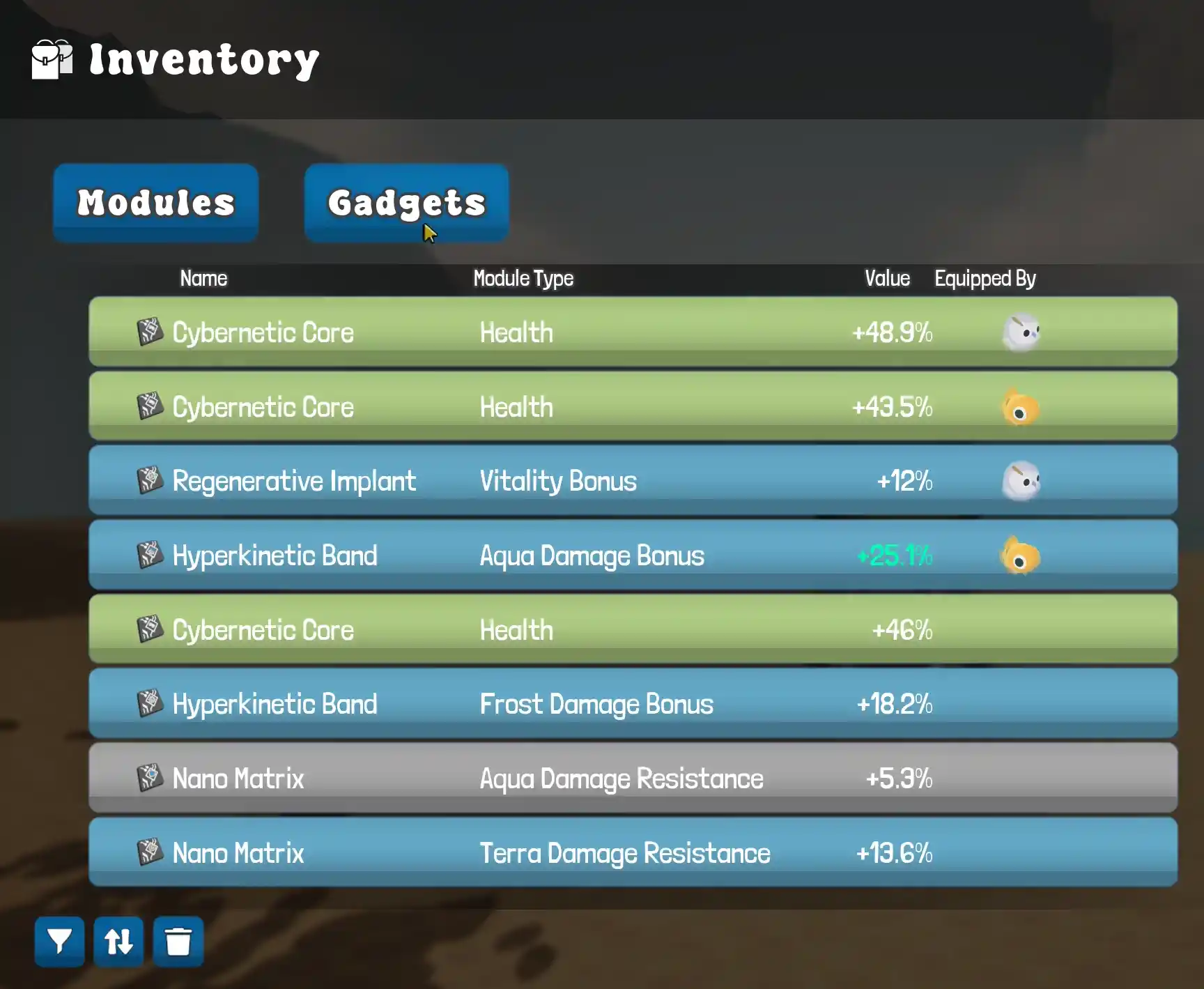

Modules and Gadgets (Beings Beyond)

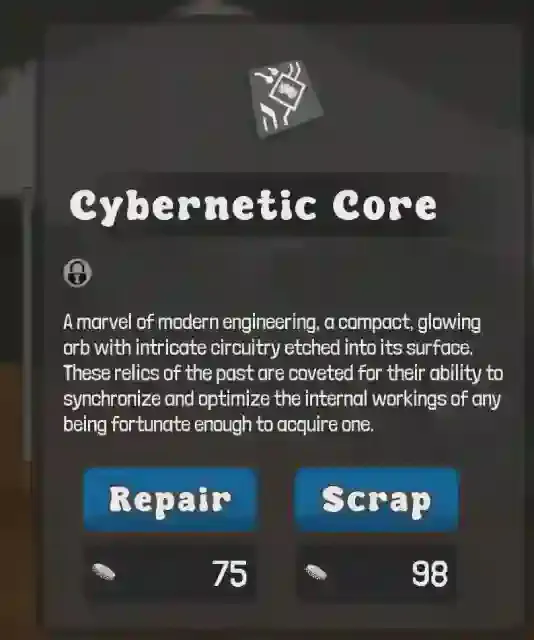

Modules are collectable, repairable items that can be equipped by a character to boost their attributes.
Each module implements 2 usages: repair and scrap.
Gadgets are collectable items that can be equipped by a team to gain certain effects.
Gadgets are collectable items that can be equipped by a team to gain certain effects.

Setup

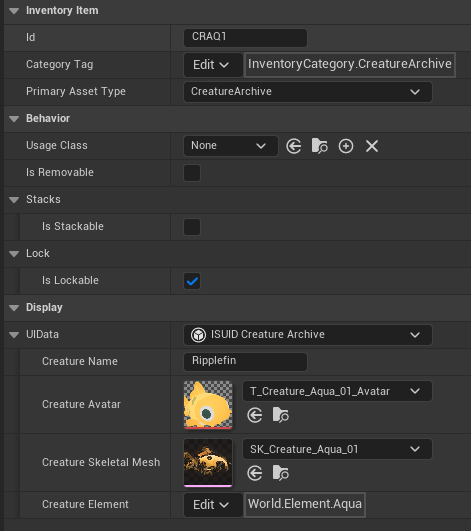

(1) Define an item using the InventoryItemDefinition class

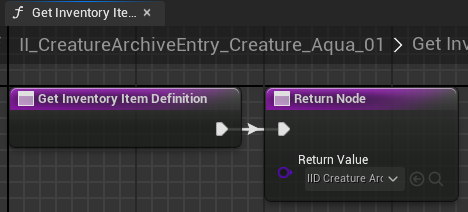

(2) Create a UObject-derived class that implements the InventoryItemInterface class, which has a method that returns the associated definition

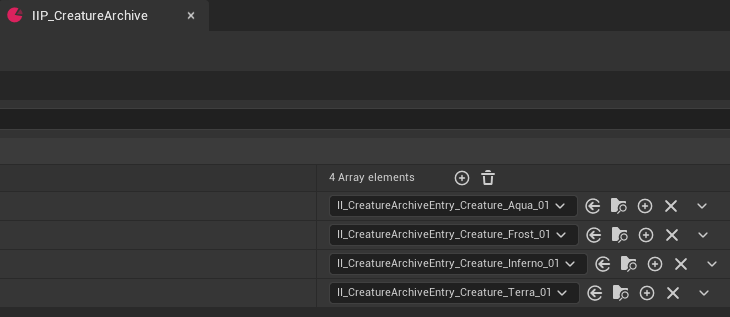

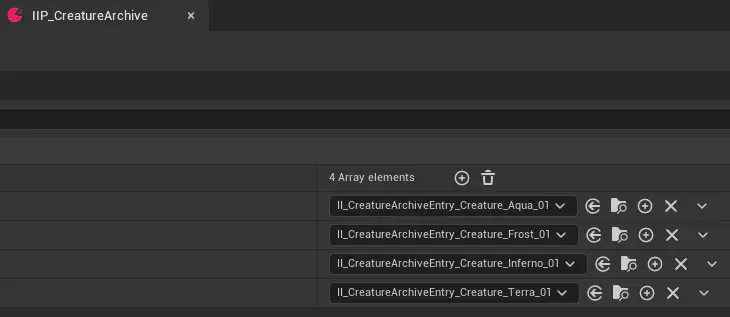

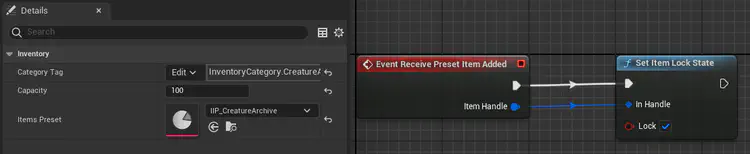

(3) This is optional, but for the Creature Archive, I created an InventoryItemPreset object that stores the inventory items to add on inventory initialization

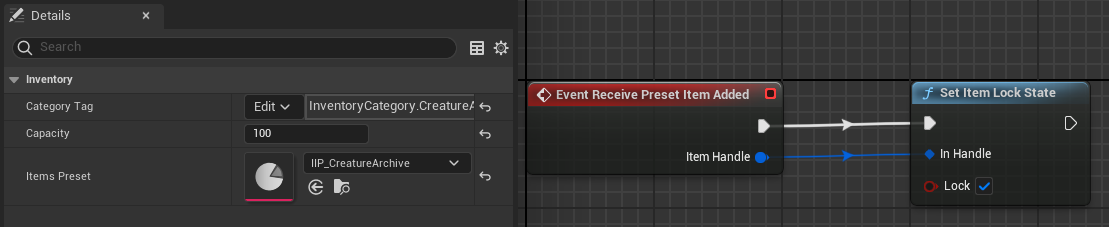

(4) Create an Inventory object

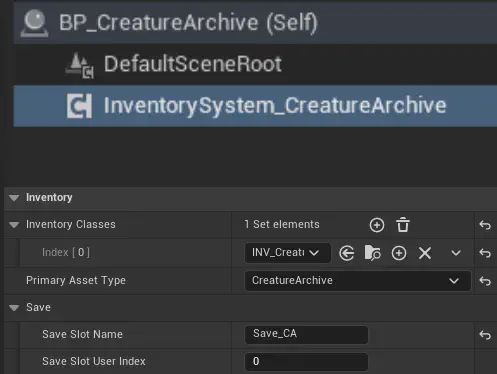

(5) Add an InventorySystemComponent to an Actor class, and then add the previously-created Inventory class to the component
Tools Unreal-Engine-5 CPP Blueprints
